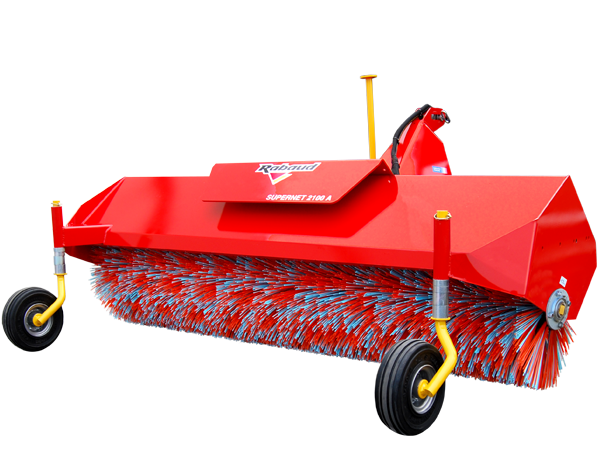

Lining Sweeper: SUPERNET
3 sweeping widths: 1.60m / 1.80m / 2.10m.
Unattached coupling on the top link to follow the road form.
Mechanical angling coupling allowing to push away the trash on the right or on the left.
Side-shift separated from angling with quick mechanical sliding.
Side brush 550mm diamètre (option).
Hard-wear brush thanks to the metal hub.
Polypropylene or mixed (polypropylene/polyester) brush rings with long fibres for more lasting brush: Ø inner 127mm / Ø outer 550mm.
Sturdier: frame and coupling kit fully made out of sheet metal.
2 tyre wheels (260 x 80) swiveling and adjustable in height with brace.
Options: blade "push-forage" / Collecting box / Metal mudflaps / Hydraulic unit for low tractor pump oil flow.
| Models | SUPERNET 1600A | SUPERNET 1800A | SUPERNET 2100A |
| Coupling | Tractor 3-point linkage N°1 and N°2 with removable pins - Unattached system on top link | ||
| Brush length | 1 585mm | 1 785mm | 2 080mm |
| Brush diameter | 550mm | 550mm | 550mm |
| Hub | Metal | Metal | Metal |
| Fibre | Polypropylene or Mixed (Polypropylene/Polyester) | ||
| Dimensions (L x W x H) with rear 3-point linkage | 1.84m x 1. 87m x 1.08m | 1.84m x 2.07m x 1.08m | 1.84m x 2.36m x 1.08m |
| Weight (without option and tractor rear 3-point linkage) | 220kg | 233kg | 251kg |
| Flow hydraulic motor | 15L/min. mini. (30L/min. mini. with collecting box) - 60.L/min. maxi. | ||
| Pressure | 120 bar at 220 bar max. | 120 bar at 220 bar max. | 120 bar at 220 bar max. |
| Angling | Mechanical angling on the right droite 20° / on the left 20° | ||
| Side-shift | Mechanical side-shift 300mm on the right / 300mm onn the left | ||
| Collecting box volume (option) | 170L | 190L | 220L |
| Drive | Tractor pump with 2 couplers | ||
|
|  |
 The option forrage blade is adaptable on a sweeper RABAUD "SUPERNET A" 1800A or 2100A. It allows to push away the big forrage marterials in one single pass, then the brush removes the small particles. | ||
| Models | SUPERNET 1600A | SUPERNET 1800A | SUPERNET 2100A |
| Coupling | Tractor 3-point linkage N°1 and N°2 with removable pins - Unattached system on top link | ||
| Brush length | 1 585mm | 1 785mm | 2 080mm |
| Brush diameter | 550mm | 550mm | 550mm |
| Hub | Metal | Metal | Metal |
| Fibre | Polypropylene or Mixed (Polypropylene/Polyester) | ||
| Dimensions (L x W x H) with rear 3-point linkage | 1.84m x 1. 87m x 1.08m | 1.84m x 2.07m x 1.08m | 1.84m x 2.36m x 1.08m |
| Weight (without option and tractor rear 3-point linkage) | 220kg | 233kg | 251kg |
| Flow hydraulic motor | 15L/min. mini. (30L/min. mini. with collecting box) - 60.L/min. maxi. | ||
| Pressure | 120 bar at 220 bar max. | 120 bar at 220 bar max. | 120 bar at 220 bar max. |
| Angling | Mechanical angling on the right droite 20° / on the left 20° | ||
| Side-shift | Mechanical side-shift 300mm on the right / 300mm onn the left | ||
| Collecting box volume (option) | 170L | 190L | 220L |
| Drive | Tractor pump with 2 couplers | ||
