New !

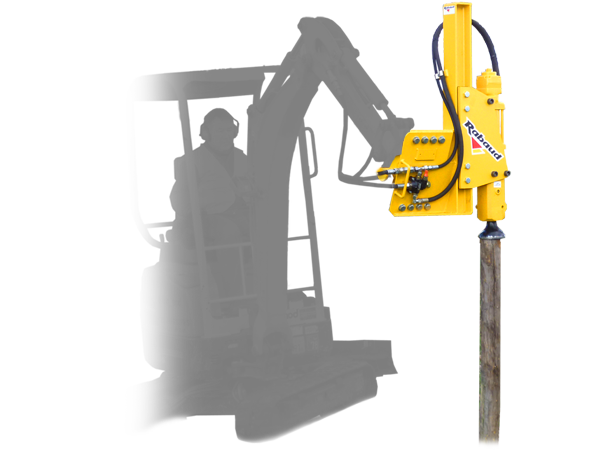

Adaptable on Mini-Excavator, or Backhoe loader.
RABAUD offers adaptations on automatic coupling or quick-fit coupling of all brands.
Drives posts of all sorts, in all grounds without adjustment.
Excellent accuracy: the post is held during the work.
Simple use.
Strongly-built striking head, wrought, machine-finished and processed, Ø 150mm.
2-year warranty striking head.
Adjustable power: does not damage the posts.
NEW: option grab for VIBRESCOPIC 35/95 PRO. Allows the handling of bundles of posts and helps placing them into the ground.
Technical characteristics
Models | VIBRESCOPIC PRO 15/35 | VIBRESCOPIC PRO 35/55 | VIBRESCOPIC PRO 35/95 |
Coupling | Mini excavator 1,5T to 3,5T or telescopic | Mini excavator 3,5T to 5,5T or telescopic | Mini excavator minimum carrier power 3,5T |
Max. post length | According to the carrier | According to the carrier | According to the carrier |
Ø of striking head | 150mm | 150mm | 150mm |
Hammering frequency | 950 strokes/min. | 950 strokes/min. | 1500 strokes/min. |
Striking power under the head | 230 joule /stroke | 230 joule /stroke | 250 joule /stroke |
Square runner length | 0.50m | 0.60m | 0.80m |
Hammer lowering | Traction cylinder | Traction cylinder | Traction cylinder |
Weight (without option) | 160kg | 180kg | 335kg |
Options
Mini-excavator/crane: coupling hitch
Compact loader/Telescopic: suspension and coupling hitch
Storage stand (for VIBRESCOPIC 15/35 & 35/55)
Hole bar alone - lenght 1.30 m
Hole bar with hydraulic extraction
Support for metal cover head & Metal cover head to be defined depending on the type of your posts
Post lifting grab
Tilting cylinder only for telescopic/front loader coupling (+/- 20°)
6-way hydraulic valve + winding electric cord 15 m + control box in cabin
Adaptable on Mini-Excavator, or Backhoe loader.
RABAUD offers adaptations on automatic coupling or quick-fit coupling of all brands.
Drives posts of all sorts, in all grounds without adjustment.
Excellent accuracy: the post is held during the work.
Simple use.
Strongly-built striking head, wrought, machine-finished and processed, Ø 150mm.
2-year warranty striking head.
Adjustable power: does not damage the posts.
NEW: option grab for VIBRESCOPIC 35/95 PRO. Allows the handling of bundles of posts and helps placing them into the ground.
Models | VIBRESCOPIC PRO 15/35 | VIBRESCOPIC PRO 35/55 | VIBRESCOPIC PRO 35/95 |
Coupling | Mini excavator 1,5T to 3,5T or telescopic | Mini excavator 3,5T to 5,5T or telescopic | Mini excavator minimum carrier power 3,5T |
Max. post length | According to the carrier | According to the carrier | According to the carrier |
Ø of striking head | 150mm | 150mm | 150mm |
Hammering frequency | 950 strokes/min. | 950 strokes/min. | 1500 strokes/min. |
Striking power under the head | 230 joule /stroke | 230 joule /stroke | 250 joule /stroke |
Square runner length | 0.50m | 0.60m | 0.80m |
Hammer lowering | Traction cylinder | Traction cylinder | Traction cylinder |
Weight (without option) | 160kg | 180kg | 335kg |
Mini-excavator/crane: coupling hitch Compact loader/Telescopic: suspension and coupling hitch Storage stand (for VIBRESCOPIC 15/35 & 35/55) Hole bar alone - lenght 1.30 m Hole bar with hydraulic extraction Support for metal cover head & Metal cover head to be defined depending on the type of your posts Post lifting grab Tilting cylinder only for telescopic/front loader coupling (+/- 20°) 6-way hydraulic valve + winding electric cord 15 m + control box in cabin
