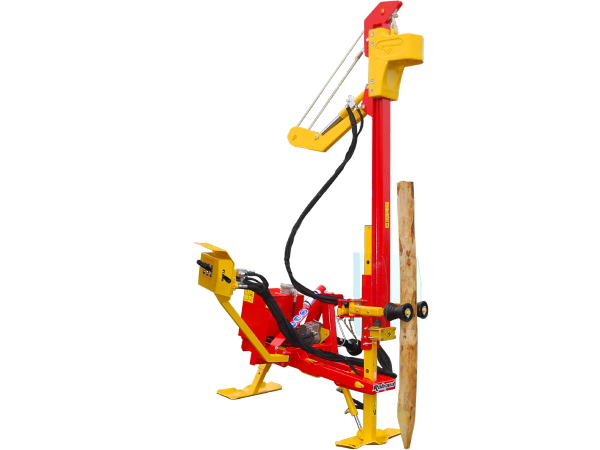

Compact 95 cm post driver: ideal to be adapted on a winegrowing tractor. The posts are driven with a 160 Kg sliding sledgehammer mounted on the vertical mast. This machine enables a work on flat or irregular vineyards.
enfonce_piquet_vigne_mat_viti

The 95 cm width eases the crossing between the rows.

Possibility to drive posts up to 3.00 M.

Standard +/- 15 ° hydraulic inclination to drive posts in a perpendicular way and/or tilted posts (support legs).

Serial hydraulic offset (42,5 cm).

160 Kg striated and concave mass for a flat striking on the top of the stake; the halyard can be adjusted.

Hydraulic post-clamp with guiding rollers for an excellent hold of the post during the driving process.

Secured lowering of the hammer thanks to the connection between the post-clamp and the hammer.

Drive through tractor pump with 2 male quick couplers or 540 rpm PTO (10 L/min. oil flow).

2 storage stands for a better steadiness during the work and the parking.

Technical characteristics

Model
Tilting mast post driver:
VITI
Maximal post length
3,00 m
Mass weight
160 Kg
Striking power
1618 joule/m
Hydraulic offset (serial)
1,09 m from the tractor axle
Hydraulic inclination (serial)
+/- 15°
Dimensions (L x W x H)
1,41 x 0,95 x 3,07 m
Weight
-
Drive
Tractor pump with 2 couplers
or 540 rpm PTO, 10 L/min
Linkage
3 point N°2 with removable locking pins
Hydraulic valve
4-way

Options

Hydraulic unit driven through the 540 rpm PTO, 40 L oil tank
Pre-hole bar
Electromechanical time meter
