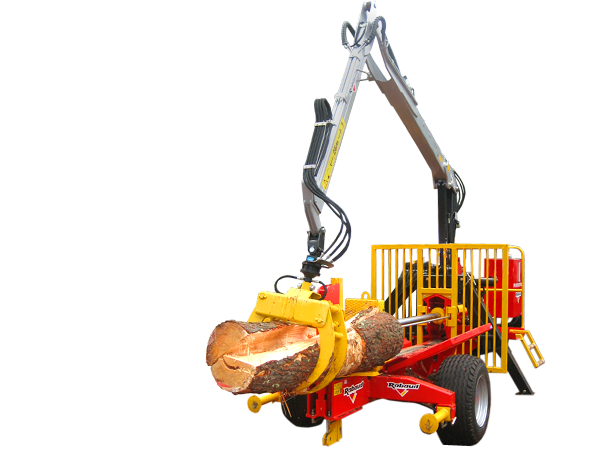

Log splitter designed especially for woodcutters, lumberjacks... Power of 40 tonnes. Loading of the logs with a forest crane.
log-splitter-for-tractor-horizontal-f40

Horizontal splitting process: power of 40 tonnes.

Lifting of the logs with forestry crane (in option): logs of 2.35m maximum all diameters.

Splitting with remote control with automatic cycle from the driver's cabin.

4-cross wedge hydraulic adjusment in height.

Transportation axle: 2 wheels 150/55-17, spiked tyres - Farm coupling ring ITR-150

Hydraulic unit with double pump flow 100L/min., tank 150L oil. Delivered with oil and transmission shaft.

Technical characteristics

Model
F40 HORIZONTAL
Splitting power
40 Tonnes
Splitting clearance
2.35m
Size (Ø piston / Ø rod)
150mm / 90mm
Work dimensions (L x W x H)
6.50m x 1.70m x 1.90m
Transport dimensions (L x W x H)
6.50m x 1.70m x 1.90m
Total weight
1 490Kg
Wedge
4 edges
Wedge length
700mm
Drive
PTO 540rpm, pump double body flow 100L/min. (75L/min.  + 25L/min.)
Coupling
Towed with axle, transportation 2 wheels 600x9

Options

Transportation axle – Width 1.60 m – 2 wheels 150/55-17 - Farm tyre – Farm coupling ring ITR-150
Safety grids: 2 for the wheels and 1 for the cylinder
Forest crane 4.60 m – Hydraulic drive through the pump of the tractor
Electro-hydraulic control - Radio control
Three-phase electric drive – 22 KW – 45 A Mini
Fendeuse F40 HORIZONTALE avec grue rabaudFendeur 40 tonnes Fendeuse horizontale Rabaud 40 tonnesGrue sur fendeuse 40 tonnesFendeuse F40 RABAUD + grueF40 Rabaud
F40 Rabaud
Fendeuse F40 HORIZONTALE avec grue rabaud
F40 Rabaud
Fendeur 40 tonnes
F40 Rabaud
Fendeuse horizontale Rabaud 40 tonnes
F40 Rabaud
Grue sur fendeuse 40 tonnes
F40 Rabaud
Fendeuse F40 RABAUD + grue
F40 Rabaud
F40 Rabaud

Horizontal splitting process: power of 40 tonnes.

Lifting of the logs with forestry crane (in option): logs of 2.35m maximum all diameters.

Splitting with remote control with automatic cycle from the driver's cabin.

4-cross wedge hydraulic adjusment in height.

Transportation axle: 2 wheels 150/55-17, spiked tyres - Farm coupling ring ITR-150

Hydraulic unit with double pump flow 100L/min., tank 150L oil. Delivered with oil and transmission shaft.

Model
F40 HORIZONTAL
Splitting power
40 Tonnes
Splitting clearance
2.35m
Size (Ø piston / Ø rod)
150mm / 90mm
Work dimensions (L x W x H)
6.50m x 1.70m x 1.90m
Transport dimensions (L x W x H)
6.50m x 1.70m x 1.90m
Total weight
1 490Kg
Wedge
4 edges
Wedge length
700mm
Drive
PTO 540rpm, pump double body flow 100L/min. (75L/min.  + 25L/min.)
Coupling
Towed with axle, transportation 2 wheels 600x9
Essieu de déplacement - voie 1,60 m pneus à crampons Transportation axle – Width 1.60 m – 2 wheels 150/55-17 - Farm tyre – Farm coupling ring ITR-150
Grilles de protection dont 2 pour les roues et 1 pour le vérinSafety grids: 2 for the wheels and 1 for the cylinder
Grue forestière 4,60 m - Entraînement hydraulique par la pompe du tracteurForest crane 4.60 m – Hydraulic drive through the pump of the tractor
Commande électro-hydraulique par radiocommandeElectro-hydraulic control - Radio control
Entraînement électrique triphasé 22 kW/30 ch - 45 A MiniThree-phase electric drive – 22 KW – 45 A Mini
