Mounted on your truck, the spreaders binders ELH provides high precision and high capacity of spreading since over 20 years.

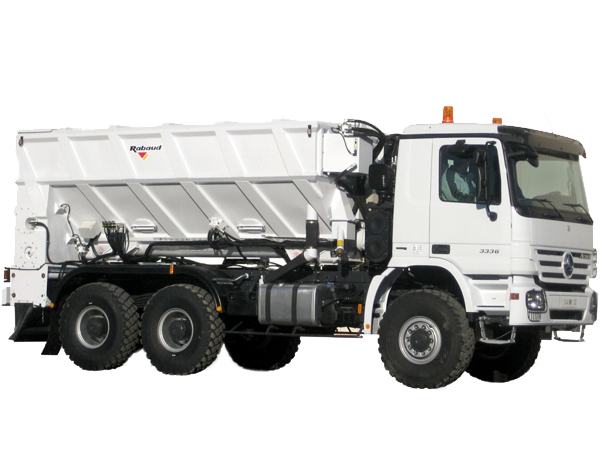

elh_15_camion

Tank volume : 15 and 17 m³.

Spreader mounted on your trcuk.

Hydraulic system flanged on PTO engine of your truck.

Binder fed into the tank by two worm screws Ø 460 mm. Rabaud technologie since 25 years.

Variable spreading width : 0.62cm to 2.48 m with 15 different spreading combinations.

Stainless cellular rotor Ø 495 mm Patented.

Spreading from 3 to 60 kg/m² proportional to speed of forward.

High spreading precision : longitudinal coefficient of variation <5% and <3.5% in 90% of treatments.
ELH 15/ 17 is the only spreader to be tested and certified by independent laboratory of administration to its accuracy spreading.

Spreading slave with the forward speed with O-CONTROL electronic system series: Management honeycomb rotor electronic looping.

Anti-dust system during tank feeling.

Listening to your specific needs, our design office study adaptation of spreader depending on your choice of carrier.

Technical characteristics

Type
Binding agent Spreader:
ELH 15
mounted on your truck
Binding agent Spreader:
ELH 17
mounted on your truck
Tank capacity
15 m³
17 m³
Spreading width
Variable spreading width : 0.62cm to 2.48 m
with 15 different spreading combinations
Variable spreading width : 0.62cm to 2.48 m
with 15 different spreading combinations
Diameter of cellular rotor
Ø 495 mm
Stainless cellular rotor (PATENTED)
Ø 495 mm
Stainless cellular rotor (PATENTED)
Transverse distribution in Hopper
4 Control sensor slave
with 2 equalizing screw and 1 "hedgehog"screw agitator "hedgehog"
4 Control sensor slave
with 2 equalizing screw and 1 "hedgehog"screw agitator "hedgehog"
Spreading gestion
O-CONTROL electronic system series
O-CONTROL electronic system series
Tank Dimensions (L x W x H)
6185 x 2545 x 2640 mm
6830 x 2545 x 2640 mm
Tank  Weight
6 940 Kg
7 110 Kg
Hydraulic auxiliary
Hydraulic system flanged on PTO engine of your truck
Hydraulic system flanged on PTO engine of your truck
EPANDEUR "ELH 15"Epandeur monté sur châssis routier : ELH 15 / 17Rotor alvéolaire protégéELH 17 sur Man avec accrochage remorqueBarre anti encastrement relevable en hauteur avec accrochage remorque Epandeurs de liants ELH monté sur châssis routierÉpandeurs de liants ELH - RABAUDAccrochage remorquePrécision et rendement d'épandageGrande précision d’épandage
Grande précision d’épandage
EPANDEUR "ELH 15"
Grande précision d’épandage
Epandeur monté sur châssis routier : ELH 15 / 17
Grande précision d’épandage
Rotor alvéolaire protégé
Grande précision d’épandage
ELH 17 sur Man avec accrochage remorque
Grande précision d’épandage
Barre anti encastrement relevable en hauteur avec accrochage remorque
Grande précision d’épandage
Epandeurs de liants ELH monté sur châssis routier
Grande précision d’épandage
Épandeurs de liants ELH - RABAUD
Grande précision d’épandage
Accrochage remorque
Grande précision d’épandage
Précision et rendement d'épandage
Grande précision d’épandage
Grande précision d’épandage

Tank volume : 15 and 17 m³.

Spreader mounted on your trcuk.

Hydraulic system flanged on PTO engine of your truck.

Binder fed into the tank by two worm screws Ø 460 mm. Rabaud technologie since 25 years.

Variable spreading width : 0.62cm to 2.48 m with 15 different spreading combinations.

Stainless cellular rotor Ø 495 mm Patented.

Spreading from 3 to 60 kg/m² proportional to speed of forward.

High spreading precision : longitudinal coefficient of variation <5% and <3.5% in 90% of treatments.
ELH 15/ 17 is the only spreader to be tested and certified by independent laboratory of administration to its accuracy spreading.

Spreading slave with the forward speed with O-CONTROL electronic system series: Management honeycomb rotor electronic looping.

Anti-dust system during tank feeling.

Listening to your specific needs, our design office study adaptation of spreader depending on your choice of carrier.

Type
Binding agent Spreader:
ELH 15
mounted on your truck
Binding agent Spreader:
ELH 17
mounted on your truck
Tank capacity
15 m³
17 m³
Spreading width
Variable spreading width : 0.62cm to 2.48 m
with 15 different spreading combinations
Variable spreading width : 0.62cm to 2.48 m
with 15 different spreading combinations
Diameter of cellular rotor
Ø 495 mm
Stainless cellular rotor (PATENTED)
Ø 495 mm
Stainless cellular rotor (PATENTED)
Transverse distribution in Hopper
4 Control sensor slave
with 2 equalizing screw and 1 "hedgehog"screw agitator "hedgehog"
4 Control sensor slave
with 2 equalizing screw and 1 "hedgehog"screw agitator "hedgehog"
Spreading gestion
O-CONTROL electronic system series
O-CONTROL electronic system series
Tank Dimensions (L x W x H)
6185 x 2545 x 2640 mm
6830 x 2545 x 2640 mm
Tank  Weight
6 940 Kg
7 110 Kg
Hydraulic auxiliary
Hydraulic system flanged on PTO engine of your truck
Hydraulic system flanged on PTO engine of your truck
