Wood Chipper Mounted On Road Trailer: XYLOCHIP 100M

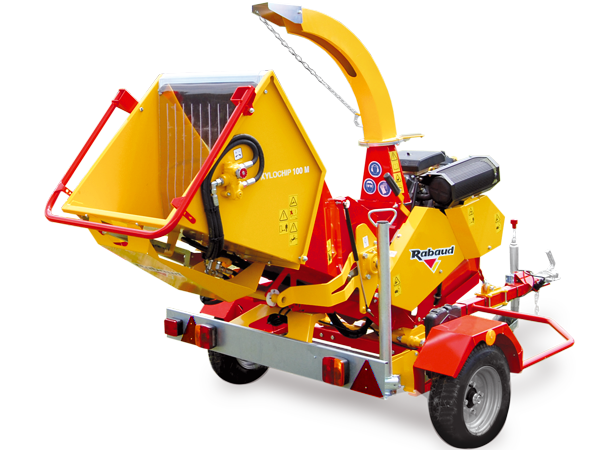

Wood chipper mounted on road trailer: XYLOCHIP 100M
Wood chipper XYLOCHIP 100 M - drive through petrol engine KOHLER petrol 18 HP, on road trailer with removable tank.
Information request
please click here
RABAUD - Broyeur de branches XYLOCHIP 100M
RABAUD - Broyeur de branches XYLOCHIP 100MBroyeur XYLOCHIP 100 MTrémie repliable au transport sur le 100MLe ROTOR '5en1'XYLOCHIP 100MXYLOCHIP 100 M sur chassis routierBroyeur thermique sur châssis routier : XYLOCHIP 100M
RABAUD - Broyeur de branches XYLOCHIP 100M
Broyeur XYLOCHIP 100 M
Trémie repliable au transport sur le 100M
Le ROTOR '5en1'
XYLOCHIP 100M
XYLOCHIP 100 M sur chassis routier
Broyeur thermique sur châssis routier : XYLOCHIP 100M
General characteristics

Wood chipper XYLOCHIP 100 M maximum wood diameter 100mm.

Rotor «5in1» :
   - 3 standards modes : 2 knives or 2 rows of hammers or knives + hammers.
   - 2 optional modes : 1 knife or 4 rows hammers

Freedom to drive on the road at 130Km/h. Trailer with drawbar, swivelling wheel, towing ring ø 50mm, rear support, lighting line.

Motorization: Thermal engine Petrol - 18hp.

Oversized feeding roller with converging whorl and teeth - RABAUD exclusivitty.
Adjustable feeding roller speed to increase or to reduce the size of the shavings.

NOSTRESS regulation (optional) with 3 positions : ECO / MEDIUM / MAX.

Blower with adjustable head rotation 230°.



Information request
You'd like more information regarding this product, request a quotation, or have a telephone conversation, please click here.
Technical characteristics


Models

XYLOCHIP 100 M

Opening (W x H)

212 x 100 mm

Maximum wood diameter

100 mm

Transport dimensions (L x W x H)

2,83 x 1,46 x 1,91 m

Work dimensions (L x W x H)

3,38 x 1,46 x 1,91 m

Feeding roller
with independent drive

1 width, 40cm,
chevron shaped

Hydraulic adjustment
or roller speed

Yes with a knob

Type of rotor"5in1" rotor or
'simple' rotor with knives
Rotor “5 in 1” specifications (standard)2 knives + 2 rows of 8 hammers
Hopper dimension (L x W x H)-
BlowerSwivelling on 230°
with handle and adjustable cap (with chain)
Foldaway hopperYes
Motorization
Number of cylinder
Kohler petrol 18 hp
2 cylinder - air cooling
Dispositif NOSTRESSoptional
Number of axle1 adjustable with drawbar
Road trailerWith swiveling wheel, rear support stand, towing knob Ø 50mm / ring 42/68 in option
Maximum transport speed130 km/h
Weight with axle430 kg
OptionsNostress device
Hourly output3000 kg (12 MAP**)



Options
- Nostress
Technical characteristics
Options


Models

XYLOCHIP 100 M

Opening (W x H)

212 x 100 mm

Maximum wood diameter

100 mm

Transport dimensions (L x W x H)

2,83 x 1,46 x 1,91 m

Work dimensions (L x W x H)

3,38 x 1,46 x 1,91 m

Feeding roller
with independent drive

1 width, 40cm,
chevron shaped

Hydraulic adjustment
or roller speed

Yes with a knob

Type of rotor"5in1" rotor or
'simple' rotor with knives
Rotor “5 in 1” specifications (standard)2 knives + 2 rows of 8 hammers
Hopper dimension (L x W x H)-
BlowerSwivelling on 230°
with handle and adjustable cap (with chain)
Foldaway hopperYes
Motorization
Number of cylinder
Kohler petrol 18 hp
2 cylinder - air cooling
Dispositif NOSTRESSoptional
Number of axle1 adjustable with drawbar
Road trailerWith swiveling wheel, rear support stand, towing knob Ø 50mm / ring 42/68 in option
Maximum transport speed130 km/h
Weight with axle430 kg
OptionsNostress device
Hourly output3000 kg (12 MAP**)
