Post Peeler : ROBOPEL'250

Post peeler : ROBOPEL'250
Post peeler: semi-automatic peeler for round wood maximum diameter 250mm. The peeling of your posts increases their lifetime and avoids diseases.
Information request
please click here
Ecorceuse de piquets ROBOPEL'250
Ecorceuse de piquets ROBOPEL'250Ecorcage de piquets d'acaciaEcorceuse ROBOPEL'250 ROBOPEL'250 avec entrainement électriqueEcorceuse de piquets ROBOPEL'250Maintien, entraînement et avancement des bois par deux pignons coniquesROBOPEL'250 écorceuse de bois RabaudCommandes par distributeursRésidus de l’écorçageEcorcage de piquet avec ROBOPEL'250 rabaud
Ecorceuse de piquets ROBOPEL'250
Ecorcage de piquets d'acacia
Ecorceuse ROBOPEL'250
ROBOPEL'250 avec entrainement électrique
Ecorceuse de piquets ROBOPEL'250
Maintien, entraînement et avancement des bois par deux pignons coniques
ROBOPEL'250 écorceuse de bois Rabaud

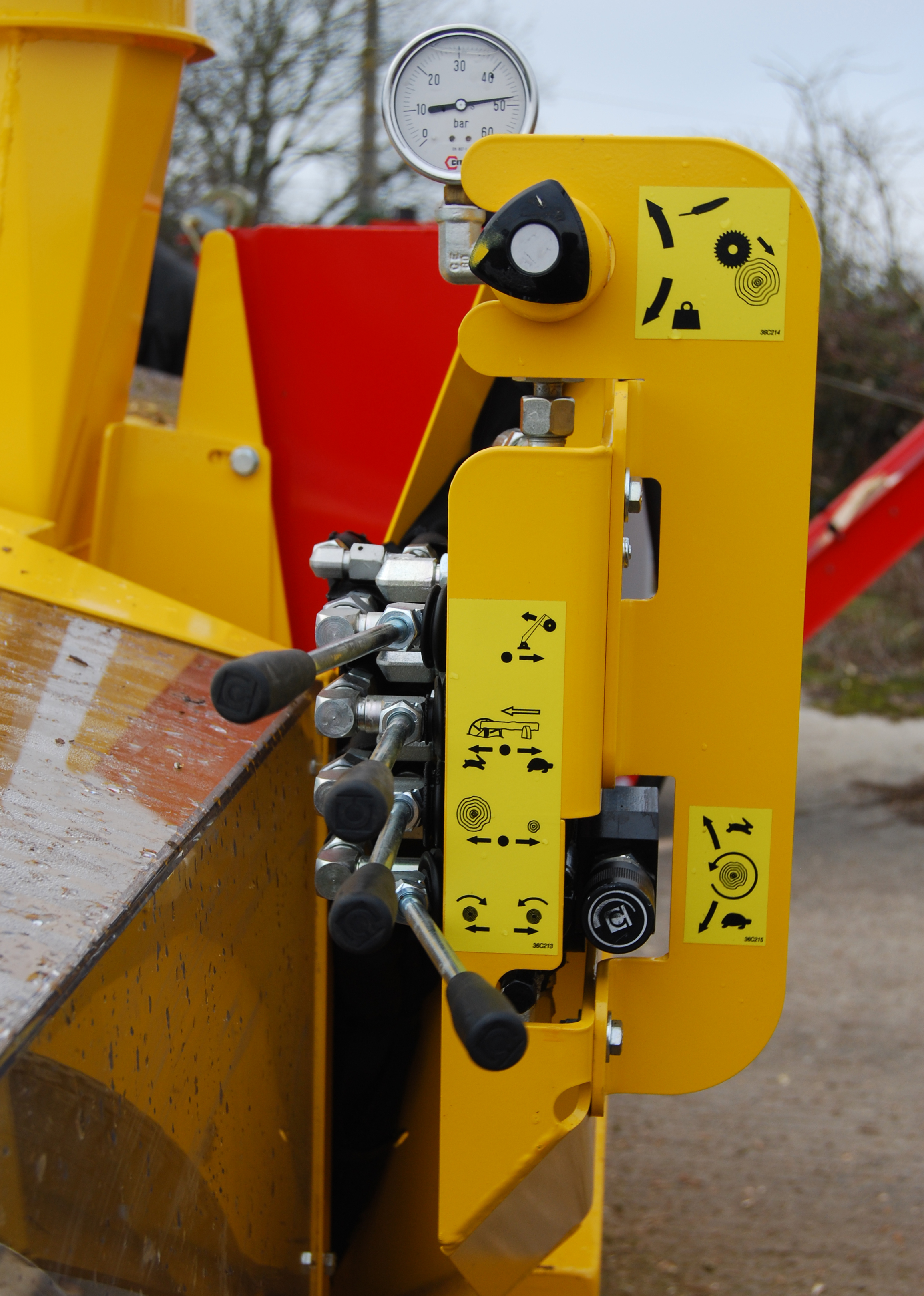

Commandes par distributeurs
Résidus de l’écorçage
Ecorcage de piquet avec ROBOPEL'250 rabaud
General characteristics

Semi-automatic peeler adaptable on Tractor 3-point linkage. Mixed electric/hydraulic unit 20hp (in option).

Peels off all sorts of round posts: chestnut, black-wodd, oak…

Peels wood of diameter 40 up to 250mm.

Wood forwarding speed can be adjusted: output 60 up to 120 posts/h.

Adjustment of the peeling quality by pressure of the two pinions on the wood.

Very efficient thanks to a convex disc fitted with 6 adjustable blades.

Post is held at the entrance and at the exit of the machine with the V-positioned tyre wheels.

NEW: Automatic release of the driving rollers (option).

Discharge blower for the chips with mobile spout at 360°. Ideal for discharging the chips into a trailer.



Information request
You'd like more information regarding this product, request a quotation, or have a telephone conversation, please click here.
Technical characteristics

Model

ROBOPEL’250

Minimum post diameter

40mm

Maximum post diameter

250mm

Dimensions (L x W x H)

1.42m x 2.39m x 2.60m

Weight

585Kg

Disc speed

1 500rpm tr/min

Number of blades de couteaux

6

Drive

PTO 540rpm or
Three-phased electric engine 20hp (option)

Coupling

Tractor 3-point linkage cat. n°2 with removable pins

Discharge of chipsBy the top with the spout
Options
declanchement_auto Automatic release of driving
 rollers with a sensor (in option).

option_centrale_electrique_triphase Mixed drive with
 ELECTRIC/HYDRAULIC
 unit 20hp
 and PTO 540rpm (tractor).




option_centrale_hydraulique Hydraulic unit, pump 30L/min.,
 oil tank 40L delivered with oil
 (without transmission shaft).
Technical characteristics
Options

Model

ROBOPEL’250

Minimum post diameter

40mm

Maximum post diameter

250mm

Dimensions (L x W x H)

1.42m x 2.39m x 2.60m

Weight

585Kg

Disc speed

1 500rpm tr/min

Number of blades de couteaux

6

Drive

PTO 540rpm or
Three-phased electric engine 20hp (option)

Coupling

Tractor 3-point linkage cat. n°2 with removable pins

Discharge of chipsBy the top with the spout
