Log Bundling Machine : FAGOMATIC BU

Log bundling machine : FAGOMATIC BU

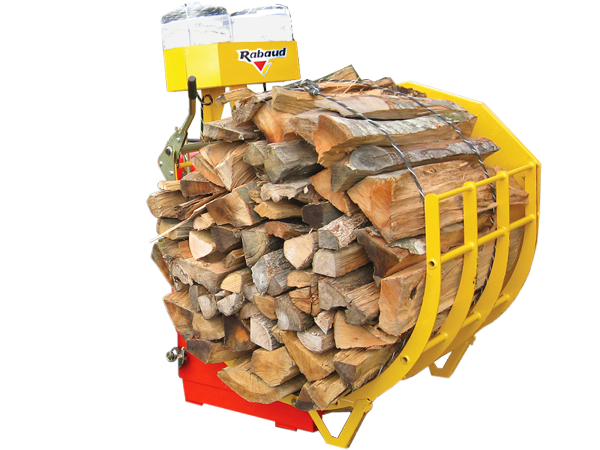

This bundling machine with its mechanical tipping is ideal for counting and store your logs. It will provides you with an accurate wood volume.
Information request
please click here
Stereuse de bûches RABAUD : FAGOMATIC BU
Stereuse de bûches RABAUD : FAGOMATIC BUFagoteuse BU avec bois de 1 mètreBennage mécanique du fagot de bûchesFAGOMATIC BU DOUBLEFAGOMATIC BU : enstereuse RabaudAttelage à 90° Fendeuse F19 FARMER II et FagoteuseFagoteuse FAGOMATIC derrière CarraroTransport de la fagoteuse sur la table de la fendeuse
Stereuse de bûches RABAUD : FAGOMATIC BU
Fagoteuse BU avec bois de 1 mètre
Bennage mécanique du fagot de bûches
FAGOMATIC BU DOUBLE
FAGOMATIC BU : enstereuse Rabaud
Attelage à 90° Fendeuse F19 FARMER II et Fagoteuse
Fagoteuse FAGOMATIC derrière Carraro
Transport de la fagoteuse sur la table de la fendeuse
General characteristics

Bundle of 1m3 for 1m long logs or half a cubic meter with 0.50m long logs.

String mechanical stretching system.

Mechanical tipping of the bundle with a simple handle controlled form the driver's cab.

Machine-welded frame with stop-end for a perfect lining-up of the logs.

Excellent stability on wet grounds thanks to 4 large support stands.

Bundling machine can be fitted on a RABAUD (FARMER II or GROUP II) log splitter platform allowing to transfer in the same time the log splitter and the bundling machine.

In option: support 2 string coils.




Information request
You'd like more information regarding this product, request a quotation, or have a telephone conversation, please click here.
Technical characteristics
ModelMechanical log bundling machine:
FAGOMATIC BU
CouplingTractor 3-point linkage n° 1 and 2 or
On platforms of log splitter FARMER and GROUPE
Dimensions (L x W x H)1.43m x 1.09m x 1.59m
Weight193kg
String stretcheningMechanical
Bundle tippingMechanical
DriveManual
Options
support_bobine_corde

Support 2 string coils



bobine

String coils:
- 8 stands, max. traction 1000kg
- 10 strands, max. traction 1250kg

attelage_90

90° coupling
Bundling machine/Log splitter
(on FARMER II or GROUP II)

attelage_droit

Straight coupling Bundling machine/Log splitter
(on FARMER II or GROUP II)



Technical characteristics
Options
ModelMechanical log bundling machine:
FAGOMATIC BU
CouplingTractor 3-point linkage n° 1 and 2 or
On platforms of log splitter FARMER and GROUPE
Dimensions (L x W x H)1.43m x 1.09m x 1.59m
Weight193kg
String stretcheningMechanical
Bundle tippingMechanical
DriveManual
