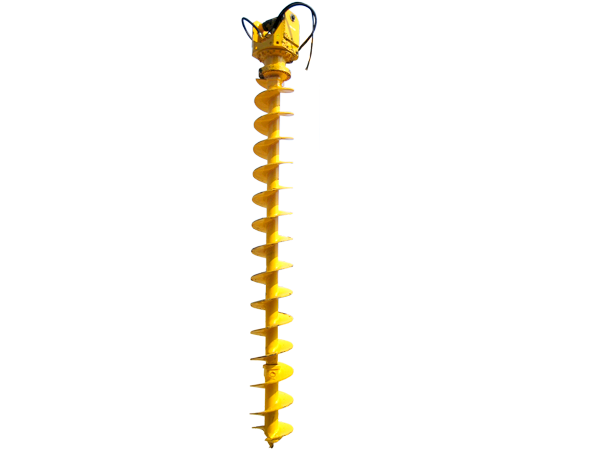

Hydraulic Hole Digger For BIOGAS

hydraulic hole digger for BIOGAS
Hydraulic hole digger TRH 1500 BG for BIOGAS purposes. Very big power of 64500 N/m, to dig in very hard soils and very deep (until 30 meters).
Information request
please click here
Tariere RABAUD Biogaz TRH1500 BG
Tariere RABAUD Biogaz TRH1500 BGTRH 1500 BIOGAZ - Trou dans orduresProfondeur de forage de 25 mètresPossibilité de monter un maximum de 7 rallongesFacilité de montage des vrilles grâce à la fixation carréeAdaptations sur pelles de différents tonnages
Tariere RABAUD Biogaz TRH1500 BG
TRH 1500 BIOGAZ - Trou dans ordures
Profondeur de forage de 25 mètres
Possibilité de monter un maximum de 7 rallonges
Facilité de montage des vrilles grâce à la fixation carrée
Adaptations sur pelles de différents tonnages
General characteristics

Adaptation on excavators maximum 35T

Quick mounting / change of augers thanks to the square coupling

Possibility to mount 7 extensions, to dig until 30 meters

Extension : 4,40 m long Ø 600 mm with reinforced whorl, thickness 20 mm.

Drilling auger :  1,10 m long  Ø 600 mm with reinforced whorl, thickness 20 mm, in 400 HB steel.

Quality of the hydraulic motor : maximum power for the hole digger

Options :
- Reinforced blade in tungsten carbide
- Reinforced point



Information request
You'd like more information regarding this product, request a quotation, or have a telephone conversation, please click here.
Technical characteristics

Model

                                                  TRH 1500 BG

Max. auger diameter

1500 mm

Coupling

square 130

Max. oil flow of the carrier

400 L/min

Recommended oil flow *

200 L/min

Max. pressure of the carrier

450 bar

Optimal pressure *400 bar
Theoretical torque6452 daN/m
Theoretical torque with output6129 daN/m
Rotation speed with recommended flow *19 rpm

Drainage

compulsory

Weight of carrier

35 T

* rotation speed depends on oil flow                * according to optimal pressure on the carrier
Options

Options :
- Reinforced blade in tungsten carbide
- Reinforced point

Technical characteristics
Options

Model

                                                  TRH 1500 BG

Max. auger diameter

1500 mm

Coupling

square 130

Max. oil flow of the carrier

400 L/min

Recommended oil flow *

200 L/min

Max. pressure of the carrier

450 bar

Optimal pressure *400 bar
Theoretical torque6452 daN/m
Theoretical torque with output6129 daN/m
Rotation speed with recommended flow *19 rpm

Drainage

compulsory

Weight of carrier

35 T

* rotation speed depends on oil flow                * according to optimal pressure on the carrier
