Self Loading And Weighing Concrete Mixers : BAP

Self loading and weighing concrete mixers : BAP
Self loading concrete mixers with weighing system. Adaptable on many vehicles : Telescopic, backhoe loader, loader, skid steer loader. Ideal to be self reliant in your concrete production
Information request
please click here

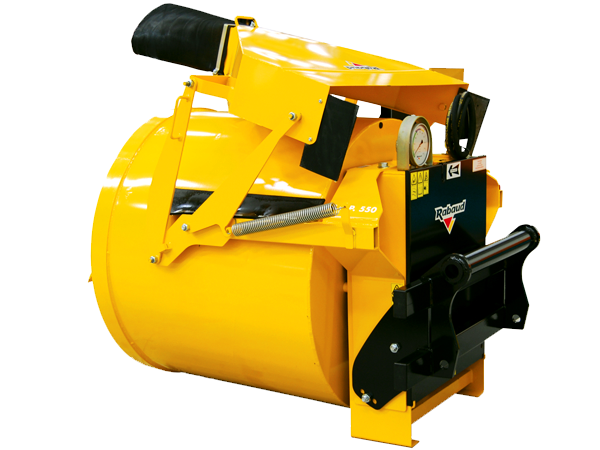

Bétonnières Auto-chargeuses-peseuses : BAP 550
Bétonnières Auto-chargeuses-peseuses : BAP 550Chargement automatique par simple rotationAjout du cimentVidange par la goulotte de déversement frontale (option)Le malaxage continue pendant la période de transfertSystème de pesage avec manomètre visible en cabine
Bétonnières Auto-chargeuses-peseuses : BAP 550
Chargement automatique par simple rotation
Ajout du ciment
Vidange par la goulotte de déversement frontale (option)
Le malaxage continue pendant la période de transfert
Système de pesage avec manomètre visible en cabine
General characteristics

Total self reliance for your concrete production

Adaptable on many vehicles : Telescopic, backhoe loader, loader, skid steer loader

Weighing system with manometer that can be seen from the driver's cab, to control the mixing at each step

Automatic loading by rotation of the machine

Possibility to continue the mixing process during the transfer to unloading site

By reversing the rotation direction, you can unload the chosen quantity at the selected place (thanks to the delivery chute in option)



Information request
You'd like more information regarding this product, request a quotation, or have a telephone conversation, please click here.
Technical characteristics

Models

BAP 450

BAP 550

Weighing system

yes

yes

Tank volume

740 liter

1040 liter
Mixing volume450 liter550 liter

Dimensions (L x W x H)

1,57 x 0,92 x 1,10 m

1,40 x 1,22 x 1,25 m
Tank diameter0,92 m1,22 m
Weight (without option)460 kg575 kg
Oil flow (min.-max.)*20 L/min - 90 L/min30 L/min - 120 L/min
Max. pressure220 bars220 bars
Hydraulic connection2 quick couplers 3/8"
Hourly output2 to 3 m³/h2 to 4 m³/h

* Oil flow divider mounted only on BAP 450, for BAP 550, there are 2 hydraulic motors (max flow 120L/min)

Options


front delivery chute





Technical characteristics
Options

Models

BAP 450

BAP 550

Weighing system

yes

yes

Tank volume

740 liter

1040 liter
Mixing volume450 liter550 liter

Dimensions (L x W x H)

1,57 x 0,92 x 1,10 m

1,40 x 1,22 x 1,25 m
Tank diameter0,92 m1,22 m
Weight (without option)460 kg575 kg
Oil flow (min.-max.)*20 L/min - 90 L/min30 L/min - 120 L/min
Max. pressure220 bars220 bars
Hydraulic connection2 quick couplers 3/8"
Hourly output2 to 3 m³/h2 to 4 m³/h

* Oil flow divider mounted only on BAP 450, for BAP 550, there are 2 hydraulic motors (max flow 120L/min)
